Gauge Wheels

Overview

Gauge Wheels to Fit Your Operation

Extra Heavy Duty Gauge Wheels

Bigham Extra Heavy Duty Gauge Wheels are designed for extra load carrying capacity and durability, and built to stand up under extreme conditions. Standard mountings fit 4 x 4”, 4 x 7,” 5 x 7”, 7 x 5” and 7 x 7”, and 2-1/4” diamond tool bars. Extra Heavy Duty Gauge Wheel packages come as singles or duals, with wide (9.5L x 15–8 ply) tires.

Standard  Duty Gauge Wheels

We also offer a wide selection of Standard Gauge Wheels to suit virtually any application. Standard mountings fit 4 x 4”, 4 x 7,” 5 x 7”, 7 x 5” 7 x 7”, and 2-1/4” diamond tool bars. Standard Gauge Wheel packages come as singles or duals, with your choice of wide (9.5L x 15–8 ply) or narrow (7.60 x 15–6 ply) tires.

Literature

 Special Application Gauge Wheels

Bigham depth control gauge wheels for virtually any application. All of these gauge wheels feature six hole Q888 hubs with 2” spindles. Hub and axle static load capacity is rated at 3500 lbs. per hub. Heavy mounting assemblies and screw jacks complement most of the gauge wheel assemblies listed. Mount brackets are available for any size frame. We can custom build gauge wheels to your specifications. Please call for a quote.

Literature

Extra Heavy Duty Gauge Wheels

Standard Features:

  • Mount bracket is made from heavy 3/4” plate steel and wraps almost completely around the tool bar.
  • Shank is constructed from 4x4x1/4” steel tubing.
  • Hub, Spindle and wheel assembly is rated at 3500 Lbs. capacity, singles, and 7000 Lbs., duals.
  • Screw jack uses 1-1/4” Acme thread screws. All adjusting parts are plated for rust prevention.

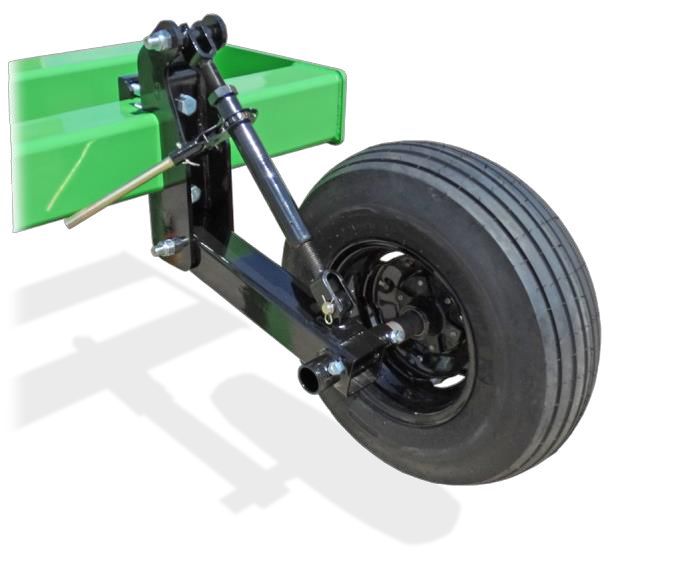

Standard Duty Gauge Wheels

Standard Features:

  • 2” diameter spindle is welded through both sides of 2 x 4 x 1/4” tubing for shank stability.
  • Narrow profile of mount bracket allows close spacing between shanks or other attachments.
  • Screw jack has 1-1/8” Acme thread screws. Ratchet handle makes adjustments quick and easy.

Special Application Gauge Wheels

Low Profile (Paratill®) Gauge Wheels

Low profile gauge wheels have a smaller diameter wheel and tire assembly in order to provide depth control under the frame for most tillage applications. Compact turnbuckle jack assembly complements the underframe application. These are supplied as standard equipment on all Paratills® and TerraTills®.

Range of Sizes and Shapes

  • Extended arms for extra tooling clearance
  • Single or dual wheels, with wide or narrow tires
  • Customize for unique applications
