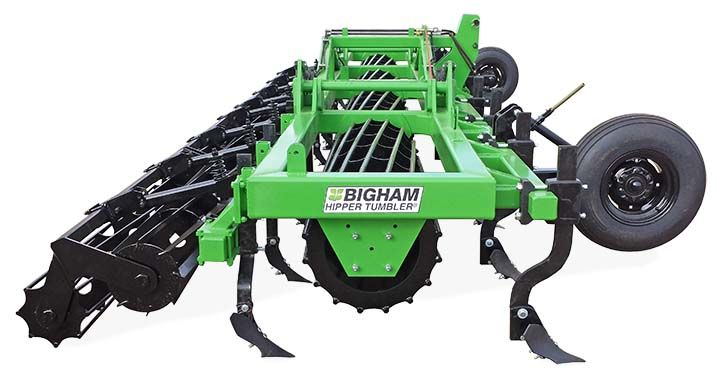

Hipper Tumbler®

Overview

Perfect Bed Preparation

The Hipper Tumbler® aids planting operation and optimizes irrigation and drainage by configuring, preparing, and compacting seed beds and furrows.

The uniformly shaped furrows between the elevated seed beds improve drainage and assist in irrigation. The Hipper Tumbler® can minimize the farmer’s required trips over the field by doing two or more jobs in one operation.

The Hipper Tumbler® can simultaneously prepare a seed bed, shape furrows, and form drainage or irrigation trenches in a single pass over a given section of the field.

Literature

Standard FeaturesOver Fold design for folding tool bars

  • Over Fold design for folding tool bars
  • Overfold and stack fold designs available for folding bars.
  • Close coupling for ease of lifting and correct operation
  • 24″ diameter Tumbler® baskets with sixteen 1″ round bars
  • Double set of 12 1/2″ Tumbler® baskets – front baskets have eight 1/4″ X 2″ blades and the back baskets have eight 3/4″ round bars
  • Two heavy duty adjustable gauge wheels w/11L X 15 tires
  • Cat 3/3N/4N

Model

                        .

Description

HT40FX



12-Row, 38″ or 40″ or 16-Row 30″ Spacing

HT40SF



12-Row 38″ or 40″ or 16-Row 30″ Spacing

HT36FX



12-Row, 36″ Row Spacing

HT36SF



12-Row 36″ Spacing

HT32FX



12-Row, 30″ Row Spacing

HT32SF



12-Row 30″ Spacing

HT27FX



8-Row, 36″, 38″ or 40″ Row Spacing

HT26X



10-Row, 30″ Spacing or 8-Row 38″ Spacing

HT21X



8-Row, 30″ Spacing or 6-Row 38″ Spacing



Furrow Assist Packages

Single Rear Basket

Pipe Roller Replacing Rear Basket
