Rollers and Baskets

Overview

Perfect Planting Conditions

Bed Conditioners and Bed Rollers leave your beds just the way you want them prior to planting.

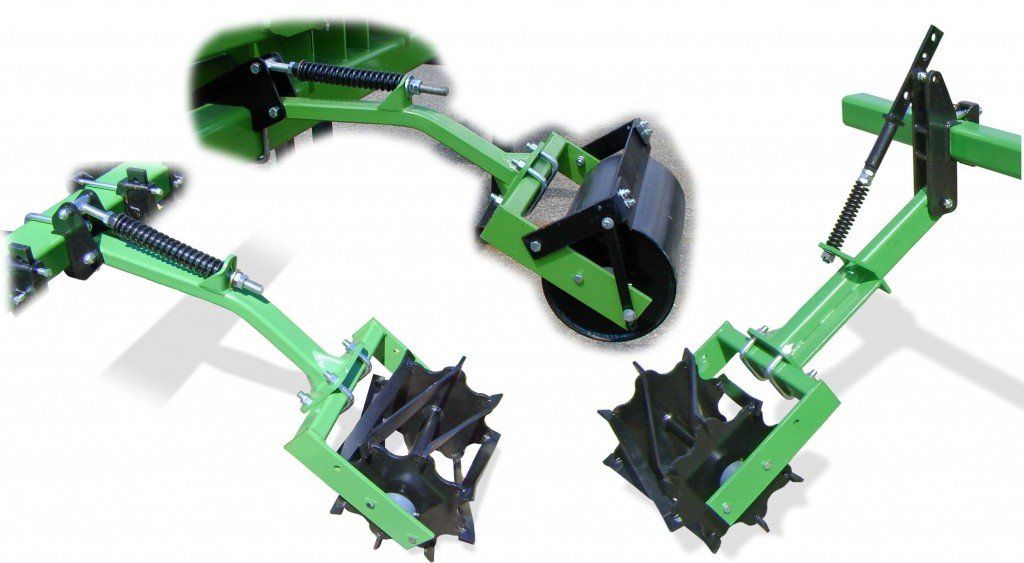

Bed Conditioners (Rolling Baskets)

The Bed Conditioner breaks up clods and seals surface moisture in the soil to firm and condition seedbeds for planting. This attachment conditions the surface of the soil in the same field pass with your primary, secondary or preplant tillage.

Extended versions can provide additional clearance by positioning the bed conditioner farther back from other ground-engaging tools.

The Bed Conditioner also provides and aggressive soil action for excellent incorporation of herbicides or other chemicals.

Bed Conditioner Literature

Medium Duty Bed Conditioner Literature

Bed Rollers

The Bed Roller seals and firms tops of beds, breaks or presses clods and seals surface moisture to protect the bed or prepare for planting.

This attachment conditions the surface of the soil in the same field pass with your primary, secondary or pre-plant tillage.

Mount assemblies are available to mount to virtually any tool bar to make this a perfect attachment for your bedder, deep tillage tool or seed bed preparation implement.

Medium Duty Roller Literature

Bed Conditioner Standard Features

  • Bed Conditioners are available for several uses. The 17” width model was developed for deep tillage,strip tillage, and narrow row applications. The 21” Bed Conditioner has specific features for pre-plant seed bed conditioning and banding chemicals and in wider row applications.
  • Spiral blades on the basket enhance aggressive soil action and smooth the soil without leaving ridges. Perfect for chemical incorporation. Spiral design is self-cleaning.
  • Greasable sealed flange bearings are designed for high speed performance in harsh field conditions. Big 1-1/2” bore bearings prevent bearing trouble.
  • Adjustable rod with spring adjustment gives consistent soil engagement and provides protection against rocks or other obstacles.
  • Heavy enough to break down tall peaked beds for planting.
  • Adjustable yoke allows close placement to other tooling.
  • Available for many sizes of tool bars.

Bed Roller Standard Features

  • Medium duty rollers are available in two primary widths. The 16” roller was developed for narrow rows, strip till applications and tooling combinations that include Stabilizers. The 20” roller is designed to prepare a seedbed in wide rows.
  • Rollers are cut from heavy pipe and are turned in a lathe to maintain a true circular drum. Scrapers may be adjusted to keep a consistent relationship between the scraper blade and the drum.
  • Greasable sealed flange bearings are designed for high speed performance in harsh field conditions.
  • Screw jack with spring adjustment gives consistent soil engagement and provides protection against rocks or other obstacles.
  • Versatile mounting system may be positioned for low clearance or high clearance applications.

May be installed on a number of tillage and bed preparation tools.

Multiple operating widths available.

Rollers and baskets can interchange on same mounting hardware.

Bed Conditioner Literature and Parts Breakdown

Medium Duty Bed Conditioner Literature and Parts Breakdown

Medium Duty Roller Literature and Parts Breakdown
