High Clearance Lister

Overview

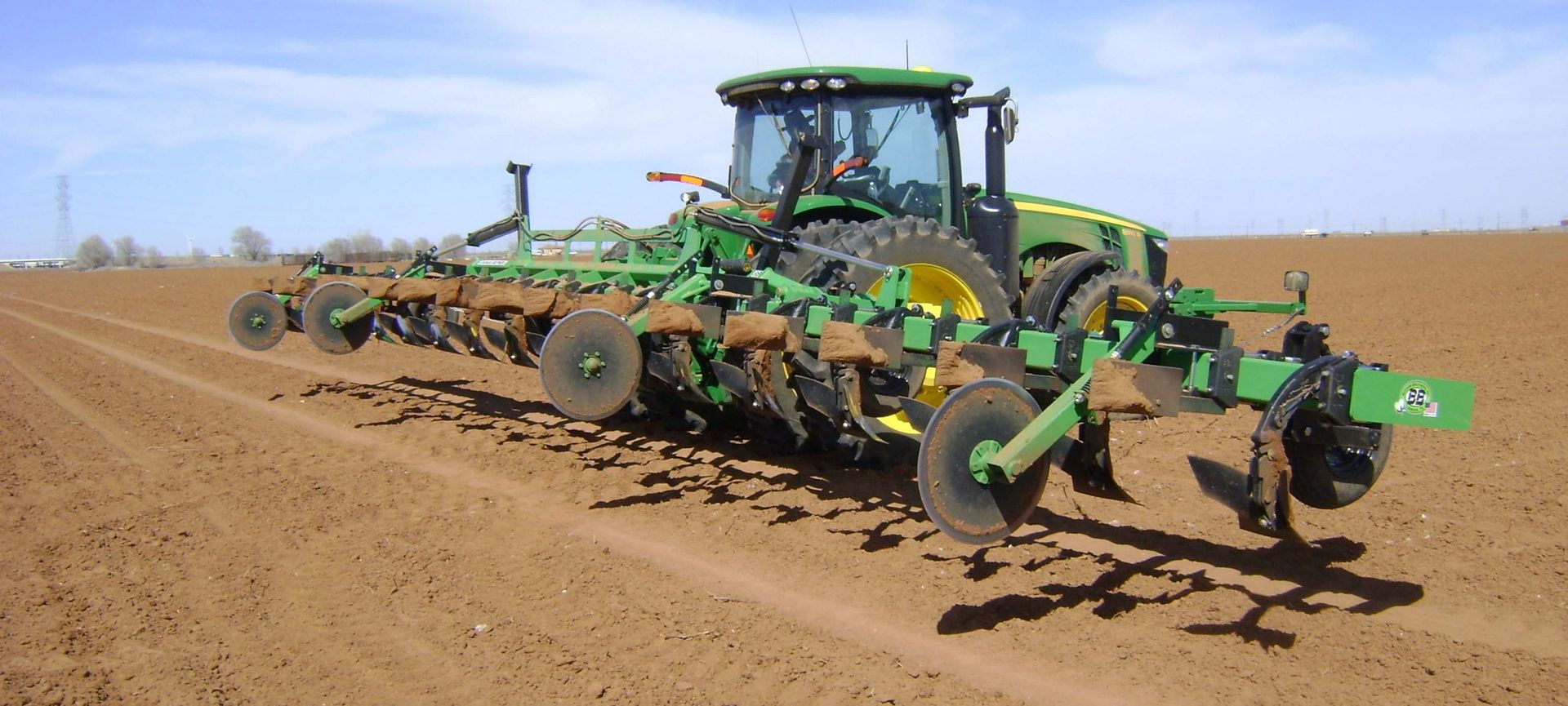

Lighten the listing load behind your tractor.

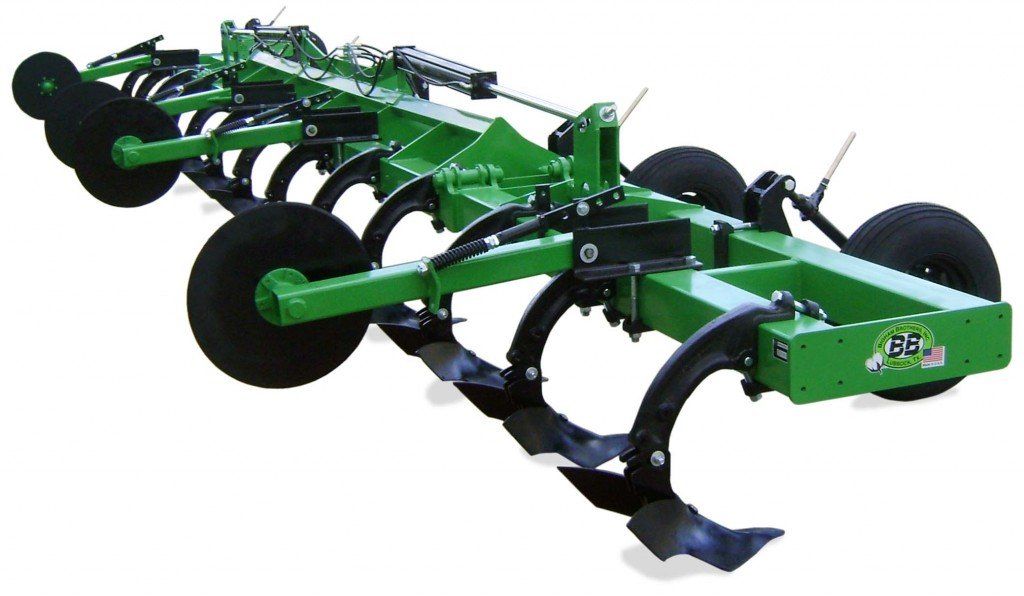

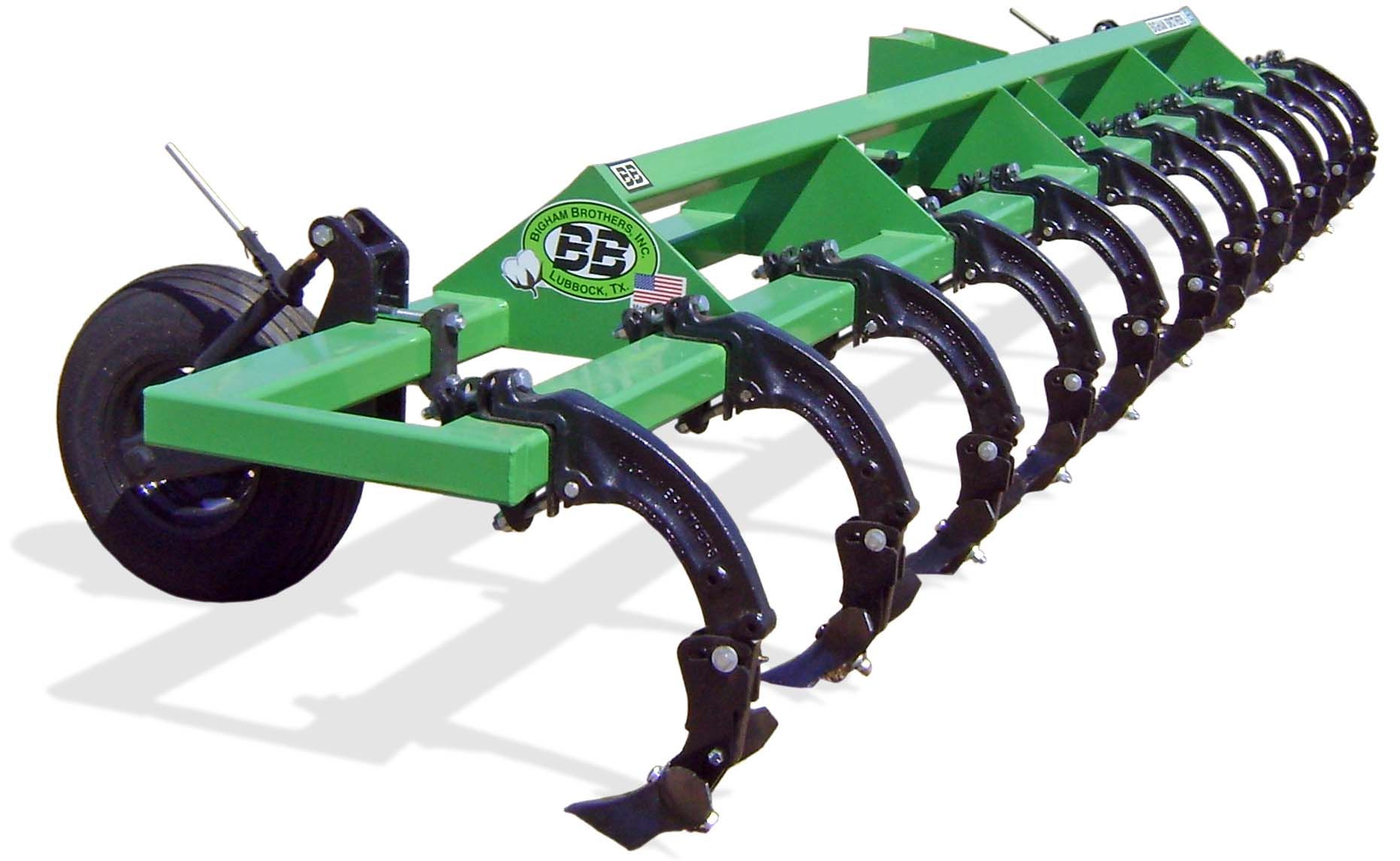

The Bigham High Clearance Lister helps you achieve the same bedding results with less horsepower.

The proven design of the High Clearance Shank and sleek profile of the Bigham High Wing 348 lister bottom slices through soils faster and easier than a conventional buster on a 1×3” shank. The component design lets you set shanks on virtually any row spacing. A number of options and accessories complete the plow to suit your operation and obtain desired bed shape.

Literature

Features

The one piece Ductile beam is heavy and durable. Beam design handles trash and soil in moist conditions. The modular shanks fit 4 x 7”, 5 x 7”, or 7 x 7” tool bars.
Our No-Twist™ foot piece is designed specifically for the High Wing lister bottom, and will fit the 346 buster. Other lower foot piece designs will accommodate JD and IH three piece bottoms. Friction trip feature is designed to eliminate structural damage when an obstruction is encountered. The foot piece is adjustable to set the pitch on lister bottoms to shape beds the way you want.
High clearance listers are mounted on tool bars with 4×7 x 3/8” lower tubes front and rear, and on 7×7” tool bars. Folding units include 4×48” cylinders, hitch, and hoses. Also available in Over Fold and Stack Fold models.

Options

Gauge Wheels
Stabilizers
Bed Conditioners and Rollers
Spring Loaded Swivel Coulters
Variety of Ground-engaging Tools For Desired Bed Shape

Parts/Manuals

Parts and Owner’s Manual
